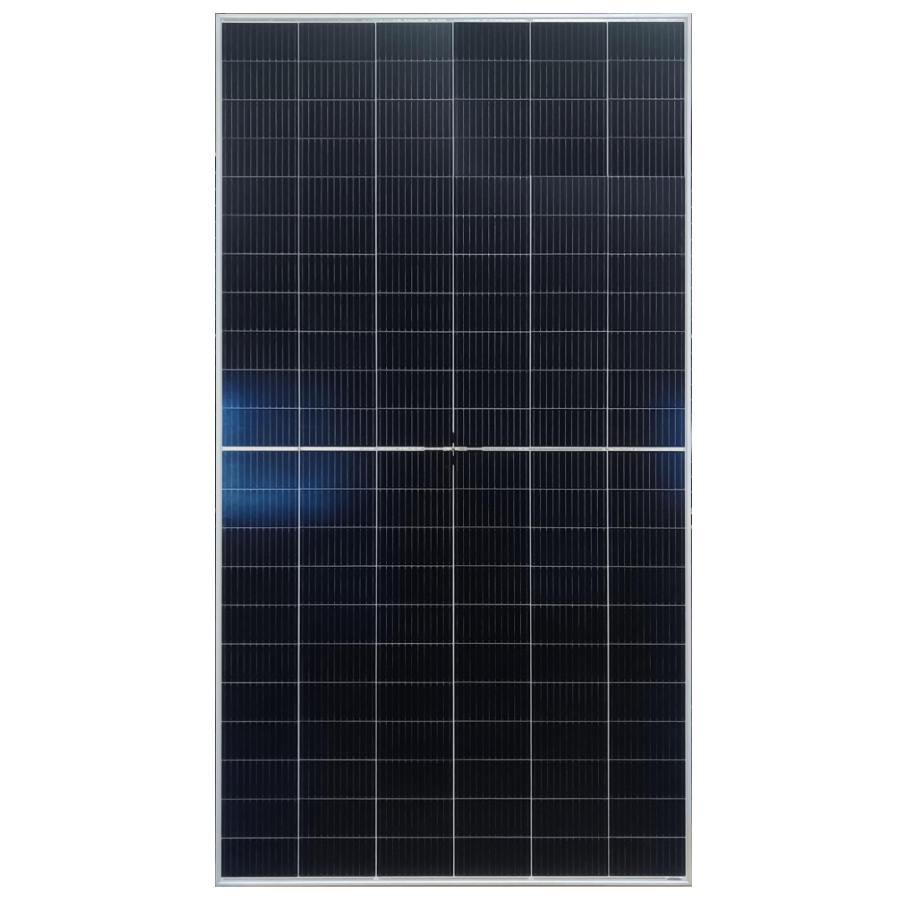

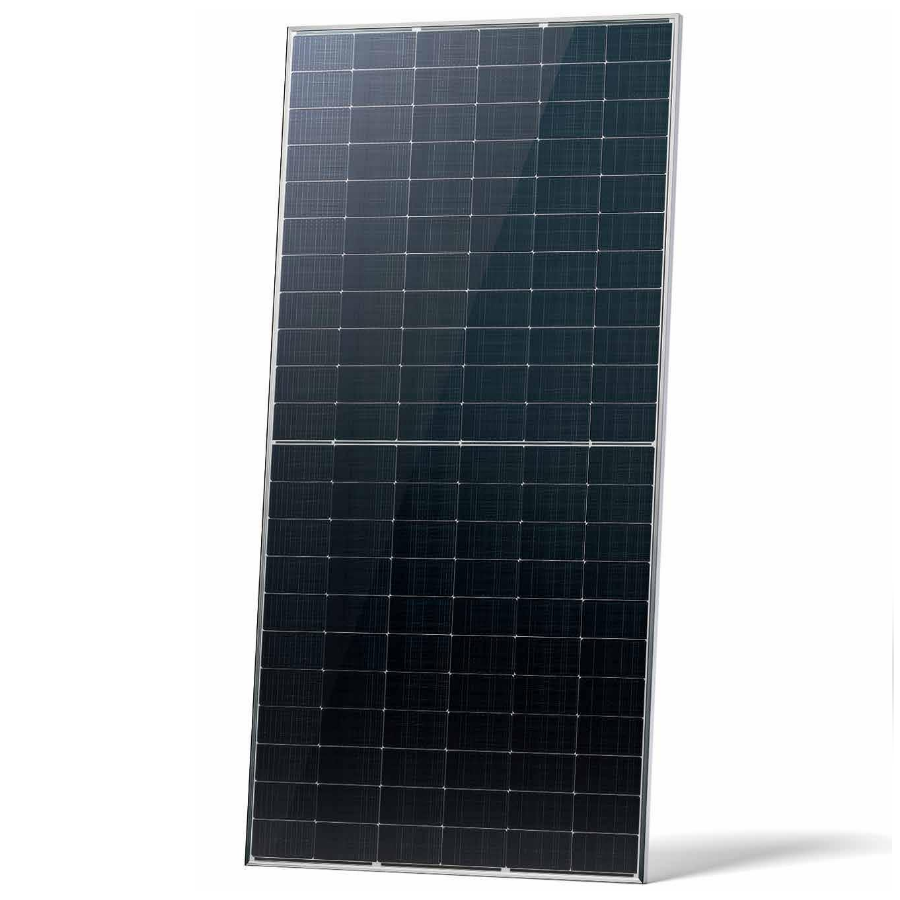

Sunerise Double Glass Solar Panel

Sunerise Double Glass Solar Panel

€179,00
€179,00
Sale Ausverkauft
Inkl. Steuern.
Vollständige Details anzeigen

Features:

  • SMBB Technology

    Better light utilization and current
    collection capabilities effectively
    improve product power output
    and reliability.

  • Dual-Sided Power Generation

    The bifacial power generation
    gain increases with the light
    received on the back side, which
    significantly decreases the LCOE.

  • Applicable environment

    The selected materials have
    passed strict PID tests and are
    suitable for use in terrain such as
    coastal deserts and lakes.

  • Load capacity

    The whole module is certified for
    a maximum static load on the
    front side of 5400Pa and a
    maximum static load on the back
    of 2400Pa。

  • Resistance to heat spots

    Optimized circuit design and
    lower operating current for
    better temperature coefficient
    and anti-hot spot capability.

  • Anti-PID guarantee

    Through the optimization of battery
    production technology and material
    control, theattenuation probability
    caused by the PID phenomenon is
    minimized.
Video Overlay Test

Our photovoltaic modules are TÜV and CE certified, ensuring they meet the highest international standards for safety, performance, and quality.

These certifications reflect our commitment to offering reliable and rigorously tested products from trusted manufacturers.

See our certifications
23.2%

Maximum conversion efficiency

0~3%

Power tolerances

<1%

First year power degradation

0.40%

2-30 years of power
attenuation per year

Engineering Drawings

Negative Image 1
Negative Image 2

Mechanical Characteristics

Cell Type N Type
No. of cells 132(66*2)
Dimensions 2384*1303*33mm
Weight 37.9kg
Front Glass 2.0mm，High permeability coated glass
Back Glass 2.0mm，Semi-tempered glass
Frame Aluminum alloy frame
Junction Box IP68 degree of protection, 3 bypass diodes
Protection Class Class II
IEC Fire Type Class C
Connector Type MC4
Output Cables (Including Connector) 4.0mm²
Wire length: 350mm, or customized

Packaging Configuration

Pallet Dimensions 1340*1136*2500mm
Packaging information 33 pcs/pallets 594pcs/ 40'HQ Container

Electrical Performance

Negative Image 1
Negative Image 2

Specifications (STC)
Maximum Power - Pmax [Wp] 700 705 710 715 720
Maximum Power Voltage - Vmp [V] 42.17 42.32 42.47 42.62 42.76
Maximum Power Current - Imp [A] 16.60 16.66 16.72 16.78 16.84
Open-circuit Voltage - Voc [V] 50.14 50.29 50.44 50.59 50.74
Short-circuit Current - Isc [A] 17.45 17.51 17.57 17.63 17.69
Power Tolerance 0~+3%
Module Efficiency STC [%] 22.5 22.7 22.9 23.0 23.2

Specifications (NOCT)
Maximum Power-Pmax [Wp] 532 536 540 544 548
Maximum Power Voltage-Vmp [V] 39.88 40.01 40.14 40.28 40.41
Maximum Power Current-Imp [A] 13.35 13.40 13.45 13.50 13.55
Open-circuit Voltage-Voc [V] 47.85 47.99 48.13 48.28 48.42
Short-circuit Current-Isc [A] 14.07 14.11 14.16 14.21 14.26
Power Tolerance 0~+3%
Module Efficiency STC [%] 22.5 22.7 22.9 23.0 23.2

Load capacity

Maximum snow load (frontal) 5400Pa
Maximum wind load (frontal) 3600Pa
Hail tested The diameter is 25mm, and the impact speed is 23m/s

Structural parameters
Maximum system voltage 1500V/DC
Operating temperature range -40~+70℃
Power tolerances 0~3%
Nominal operating temperature 45±2℃
Maximum rated fuse current 35A

Annual Degradation Graph

Negative Image 2
15 Year

Product Warranty

30 Year

Linear Power Warranty

1%

First-year Degradation

0.40%

Annual Degradation

Over 30 Years
